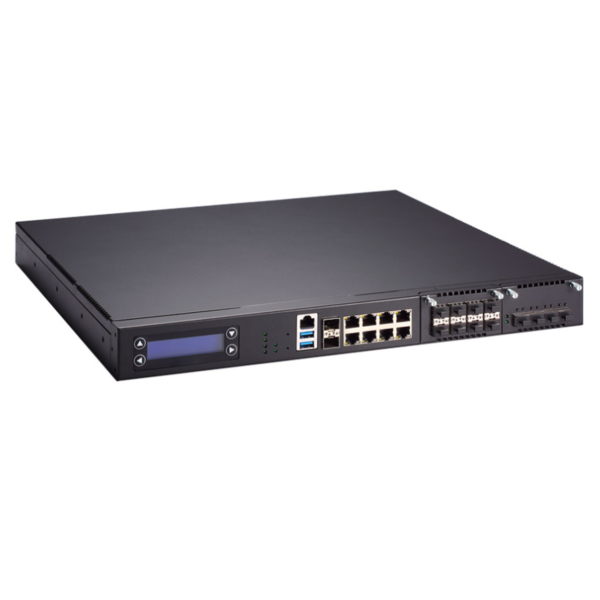

V930
SKU: 6911410000
(ETX-2V-AX/AC/2SP/8U/M2/X16C/512S/64R)
– Intel® Xeon® processor D-1577 (Broadwell-DE)
– 2 DDR4-2400 R-DIMM/U-DIMM, 64GB memory up to twenty-four 10/100/1000 Mbps Ethernet ports and two 10 GbE SFP+ ports
– Two expandable LAN modules supporting 1GbE/10GbE/Fiber/Copper/Bypass (optional)
– Supports 1U redundant power supply for optional
– Supports IPMI/TPM 1.2 (onboard) for optional
– Suitable for enterprise firewall, network bandwidth controller, and UTM Applications
– Throughput: 10+ Gbps (*)
-
Descripción
Throughput con:
| NGFW | AV+NGFW | IPS+NGFW | AV+IPS+NGFW |
| 8500 Mbps | 1700 Mbps | 850 Mbps | 637,5 Mbps |
Donde:
AV es Antivirus
NGFW es Next Generation FireWall
IPS es Intrusion Prevention System
VISION GENERAL
El V930 tiene plataforma 1U Rackmount Network Appliance con procesador Intel® Xeon® D-1577 de 16 cores y 10 puertos LANs
El V930 viene con dos puertos 10GbE SFP +, ocho puertos Gigabit Ethernet y dos módulos LAN expandibles que admiten 1GbE / 10GbE / Fibra / Cobre / Bypass con un máximo de 26 puertos LAN. Cuatro zócalos DDR4-2400 MHz R-DIMM / U-DIMM pueden proporcionar una memoria del sistema de hasta 128 GB y admitir tipos de memoria ECC y no ECC. Para el almacenamiento, admite un disco duro mSATA y dos discos duros SATA de 2,5 ”. Este dispositivo de red Intel® Broadwell-DE de alto rendimiento es una solución ideal para firewall empresarial, controlador de ancho de banda de red y aplicaciones UTM.
ESPECIFICACIONES
| Form Factor | · 1U rackmount |
| CPU | · Intel® Xeon® processor D-1577 (Broadwell-DE) |
| Chipset | · SoC Integrated |
| System Memory | · 4 x R-DIMM/U-DIMM DDR4-2400 non-buffer non-ECC/ECC memory, 64GB |
| BIOS | · AMI |
| Ethernet | · 8 x 10/100/1000 Mbps Ethernet (Intel® i210)
· 2 x 10 GbE SFP+ · 2 x LAN module (optional), max. up to 26 LAN ports |
| LAN Bypass | · 2 pairs |
| LAN Module | · 2 slots |
| Storage | · 2 x 2.5″ SATA HDD
· 1 x mSATA (512GB) |
| Expansion | · 1 x PCIe x8 (optional) |
| I/O Interface | · 1 x RS-232 (RJ-type)
· 2 x USB 3.0 · 8 x RJ-45 + 2 x SFP+ |
| Power Supply | · 270 W ATX power supply
· 280 W 1U redundant power supply (optional) |
| LCM Module | · Yes |
| Operating Temperature | · 0°C ~ 45°C (+32°F ~+113°F) |
| Dimensions (H x W x D) | · 44 x 430 x 391mm (1.73″ x 16.93″ x 15.39″) |
| Weight (net/gross) | · 8.5 kg (18.74 lb)/9.8 kg (21.61 lb) |
| OS | · Linux Kernel |
| Certifications | · FCC class A
· CE class A |
