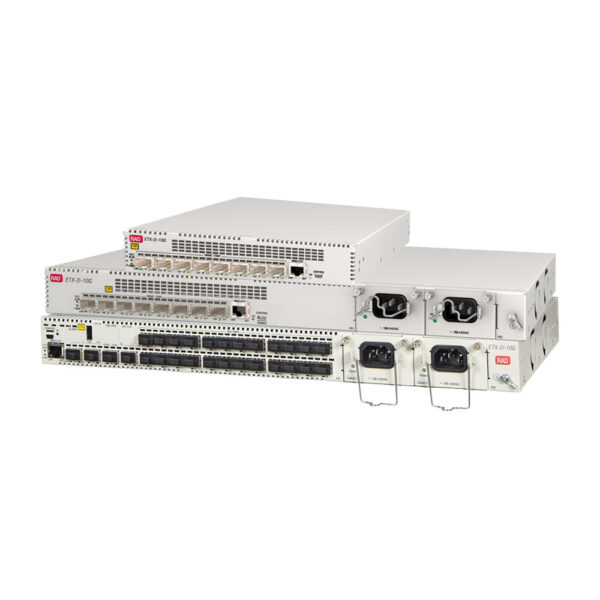

ETX-2i-10G
10G Carrier Ethernet Demarcation Device
The ETX-2i-10G combines intelligent, high bandwidth demarcation and aggregation capabilities for enterprise headquarters and mobile backhaul operators. As an aggregation solution at the concentration point, a single unit can support numerous services and concurrent OAM sessions.
ETX-2i-10G is part of the suite of ETX-2i, a line of next generation NID/NTUs offering advanced demarcation for SLA-based, L2 and L3 business services, wholesale services and mobile backhaul. The ETX-2i offers a complete service life-cycle toolset, as per MEF 3.0 specifications. The ETX-2i also serves as a universal CPE (uCPE) Whitebox+, which enhances a pluggable x86 server module with physical network functions (PNFs) to enable superior performance for vCPE applications. It is supported by RADview management and orchestration.

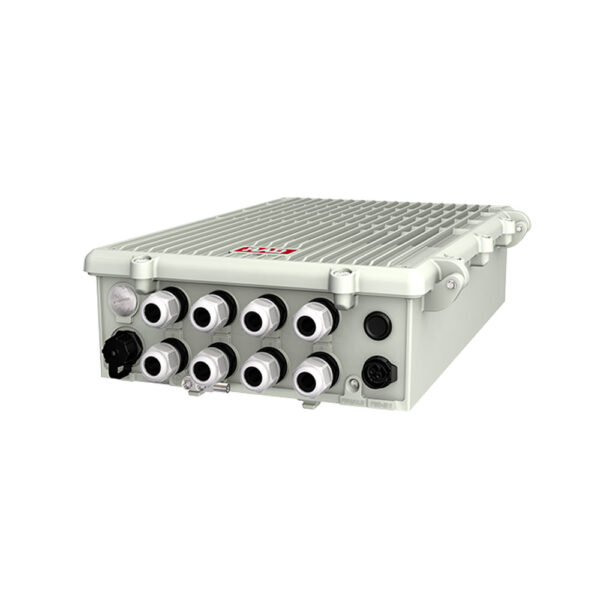

Hardened enclosure option available.
-
Descripción
10G Ethernet Access Device Quick Specs
ETX-2i-10G offers the following features:
– 19” unit with up to four 10-GbE and up to 24 GbE ports in various
combinations
– Half and full 19” unit with up to eight 10-GbE ports or four 10-GbE
and up to eight GbE ports in various combinations
– Flexible synchronization offering Sync-E, IEEE 1588v2 slave, BC and TC for frequency and phase synchronization in mobile networks
– ITU-T G.8032 Ethernet Ring Protection Switching
– NEBS-compliant and environment-resistant hardened enclosure options19”, 1RU with redundant power supply
